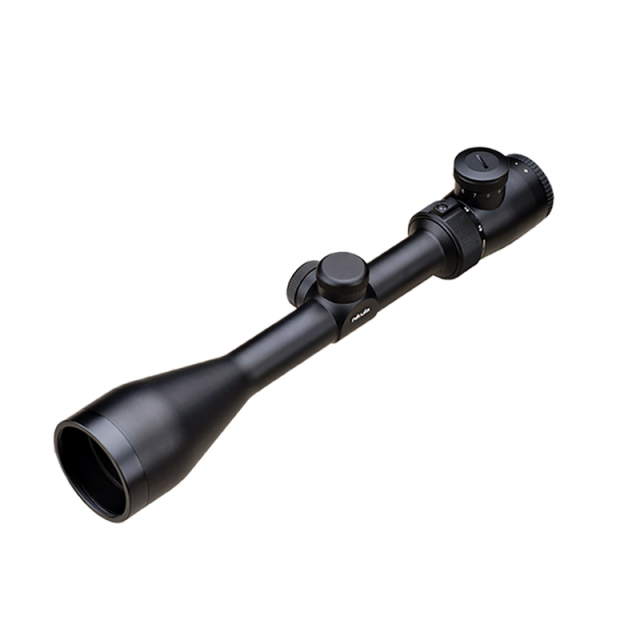

R4 - 4x MAGNIFICATION RANGE

Item No.: R4
Feature:
. Fully multi-coated optics to produce sharp image
. 25.4mm tub for superior strength
. Side parallax adjustment to infinity (optional)
. Glass etched reticle with red illumination
Description
 MODEL NO MAGNIFICATION X
OBJECTIVE LENS
FIELD OF VIEW
(m/100m)
FIELD OF VIEW
(ft/100yds)
EXIT PUPIL DIA
(mm)
EYE-RELIEF
(mm)
WEIGHT
(g/oz)

R4 031242

3-12X42

11.4-2.8

34.2-8.4

Ø 14~3.5

100

420g/14.88oz

R4 041644

4-16X44

8.2-2.3

24.6-6.9

Ø 11~2.75

100

420g/14.82oz

R4 251050

2.5-10X50

12.2-3.6

36.6-10.5

Ø 15~4.8

100

460g/16.23oz

R4 031250

3-12X50

10.8-2.8

32.4-8.4

Ø 16.6~4.17

100

530g/18.70oz

R4 062450

6-24X50

5.6-1.4

16.8-4.2

Ø 16.6~4.17

100

555g/19.58oz
